While the news-breaking launch of the Raspberry Pi Pico is still fresh in our minds, here is another launch of a tiny but powerful development board in the world of microcontroller boards on the footprint of Raspberry Pi Pico from Arduino officials.

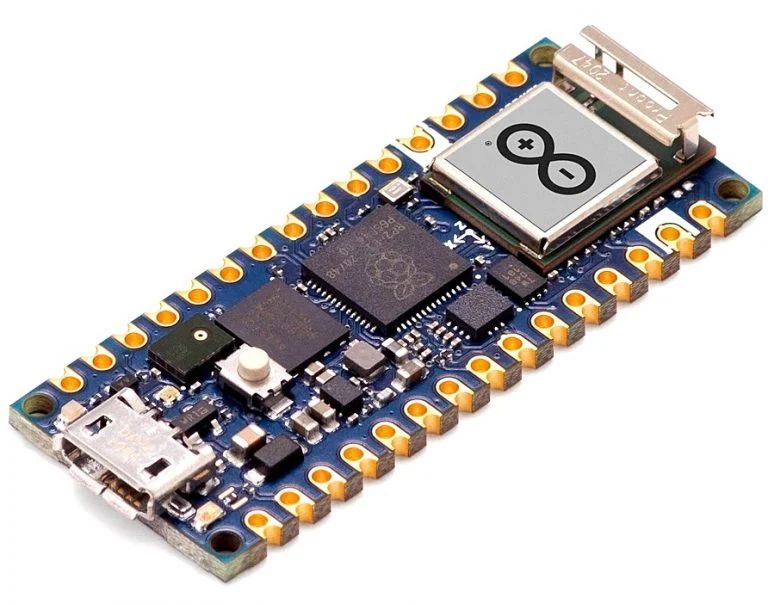

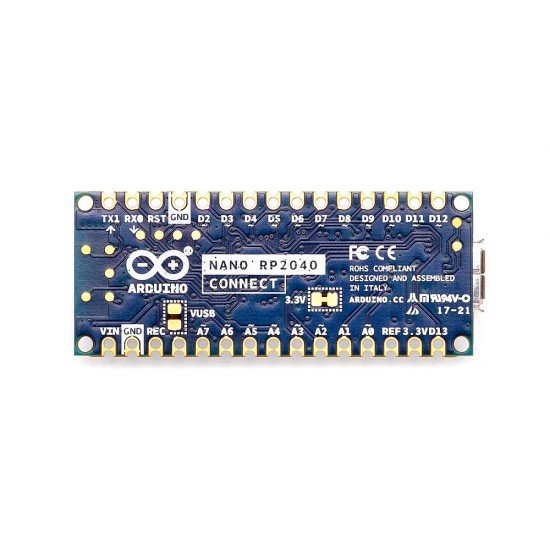

Arduino named it “Arduino Nano RP2040 Connect” a newly launched Microcontroller board welcoming the Raspberry Pi’s RP2040chip on which NANO connect has been built. The Arduino Nano RP2040 Connect shares a similar form factor to the Raspberry Pi Pico, but it includes extra functionality, chiefly WiFi and Bluetooth along with a 9-axis IMU sensor and microphone.
Arduino also broke the news that they will be porting the Arduino IDE for use with the RP2040 chip. This is welcome news for C/C++ developers and embedded hobbyists alike.
Features and Specifications:
Raspberry Pi RP2040 Microcontroller:
- 133MHz 32bit Dual Core Arm Cortex-M0+
- 264kB on-chip SRAM
- Direct Memory Access (DMA) controller
- Support for up to 16MB of off-chip Flash memory via dedicated QSPI bus
- USB 1.1 controller and PHY, with host and device support
- 8 PIO state machines
- Programmable IO (PIO) for extended peripheral support
- 4 channel ADC with internal temperature sensor, 0.5 MSa/s, 12-bit conversion
- SWD Debugging
- 2 on-chip PLLs to generate USB and core clock
- 40nm process node
- Multiple low power mode support
- USB 1.1 Host/Device
- Internal Voltage Regulator to supply the core voltage
- Advanced High-performance Bus (AHB)/Advanced Peripheral Bus (APB)
- U-blox® Nina W102 WiFi/Bluetooth Module:
- 240MHz 32bit Dual Core Xtensa LX6
- 520kB on-chip SRAM
- 448 Kbyte ROM for booting and core functions
- 16 Mbit FLASH for code storage including hardware encryption to protect programs
- and data
- 1 kbit EFUSE (non-erasable memory) for MAC addresses, module configuration,
- Flash-Encryption, and Chip-ID
- IEEE 802.11b/g/n single-band 2.4 GHz WiFi operation
- Bluetooth 4.2
- Integrated Planar Inverted-F Antenna (PIFA)
- 4x 12-bit ADC
- 3x I2C, SDIO, CAN, QSPI
Memory:
- AT25SF128A 16MB NOR Flash
- QSPI data transfer rate up to 532Mbps
- 100K program/erase cycles
Package Includes:
1 x Arduino Nano RP2040 Connect without Header
