M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)

M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
Based on 0 reviews. - Write a review
₹2,359
Ex Tax: ₹1,999
  • Stock: In Stock
  • Model: 8415
  • SKU: AST1464
  • Location: India
M5 STACK M5 STACK
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

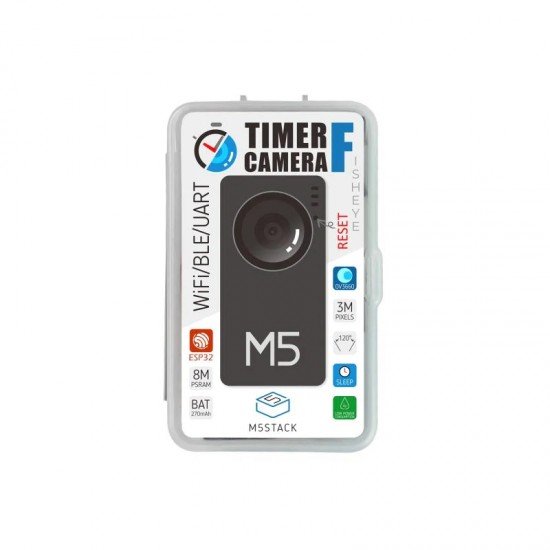

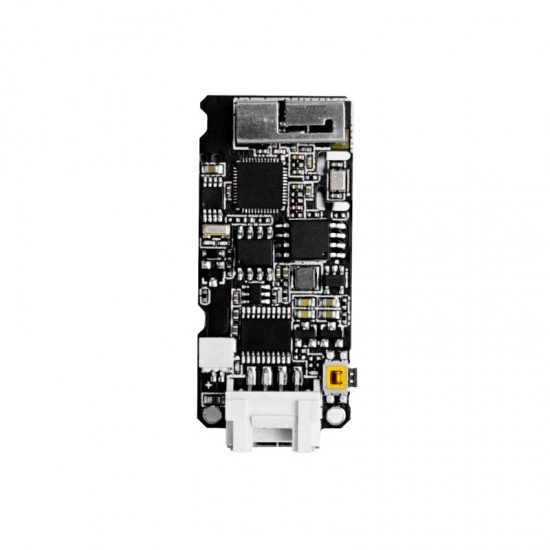

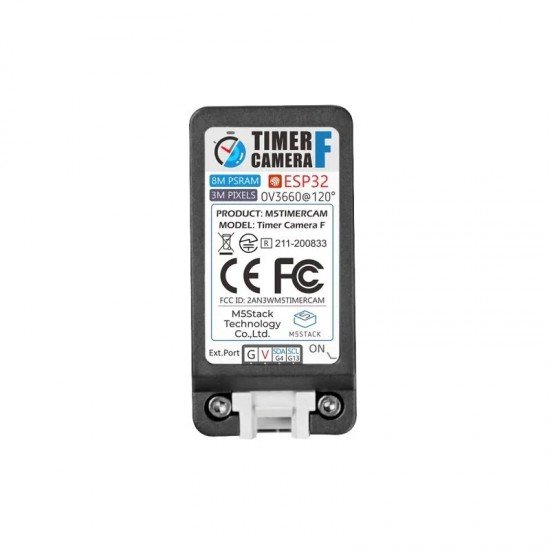

The Timer Camera F is a fisheye camera module based on ESP32-D0WDQ6-V3 with 8M PSRAM and 4M Flash on board. 3.0-megapixel camera (OV3660) with DFOV 120° and a maximum resolution of 2048×1536 photos can be captured. The camera features an ultra-low-power design, and the internal integrated RTC (BM8563) draws out the IRQ signal, which can be used for sleep and timer wake-up (sleep current down to 2μA). The built-in 270mAh battery provides more than one month of battery life with timed pictures (one per hour) enabled.


Features:

  • Design based on esp32
  • Wi-Fi image transmission
  • Timed sleep wake up
  • Status indicator
  • Ultra-low power design
  • Built-in 270mAh battery
  • Programming platform:ESP-IDF/Arduino/UIFlow


Specifications:

  • PSRAM: 8MB
  • Flash: 4M
  • Battery: 270 mAh
  • Image Sensor: OV3660
  • Maximum resolution: 3M pixels
  • Output format: 8-/10-Bit RAW, RGB and YCbCr output, compression.
  • DOV: 120°

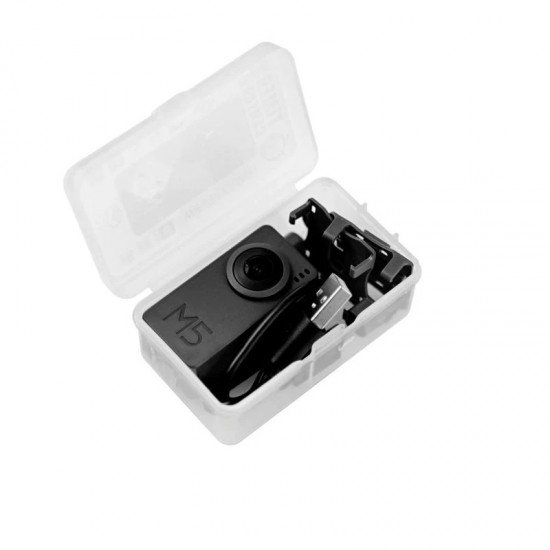

Package Includes:

1 x M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
