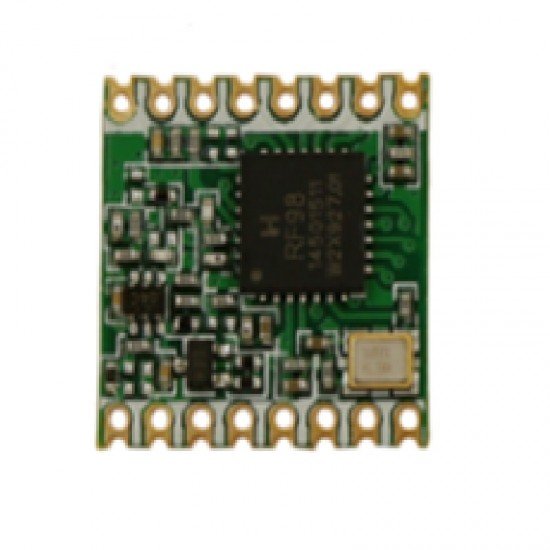

LoRa module RFM98W-433S2R.

LoRa module RFM98W-433S2R.
LoRa module RFM98W-433S2R.
Based on 0 reviews. - Write a review
₹629
Ex Tax: ₹533
  • Stock: In Stock
  • Model: 9292
  • SKU: AST2348
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The RFM95W/96W/98W transceivers feature the LoRa TM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. Using LoRa TM modulation technique RFM95W/96W/98W can achieve a sensitivity of over -140dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness.

LoRa TM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption. These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The

RFM95W/96W/98W deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.

Application:

Automated Meter Reading.

Home and Building Automation.

Wireless Alarm and Security Systems.

 Industrial Monitoring and Control.

Long range Irrigation Systems.

Features:

  • +14 dBm high efficiency PA.
  • LoRa TM Modem.
  • Programmable bit rate: 300 kbps.
  • Excellent blocking immunity.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRa TM and OOK modulation.
  • Built-in bit synchronizer for clock recovery.
  • Preamble detection.
  • Automatic RF Sense and CAD with ultra-fast AFC.
  • Built-in temperature sensor and low battery indicator.

Specification:

Dynamic Range RSSI: 127 dB

Packet engine: 256 bytes with CRC.

Module Size: 16x16mm.

Low RX current: 10.3 mA.

register retention: 200 nA.

maximum link budget: 164 dB.

RF output: 3.3V:

High sensitivity: down to -144 dBm.

Bullet-proof front end: IIP3 = -12.5 dBm.

Package Includes:

1 x LoRa module RFM98W-433S2R.
