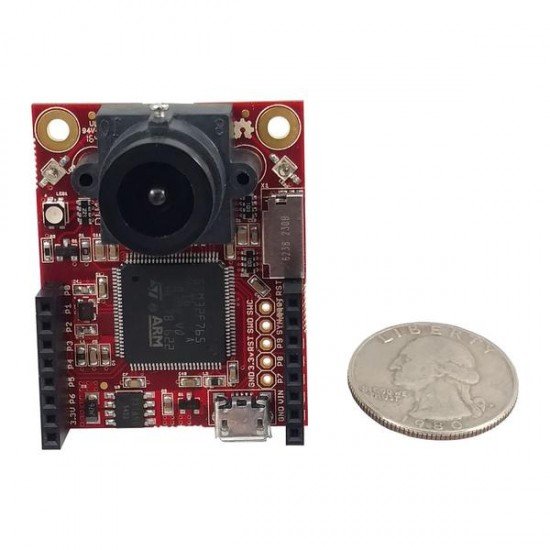

The OpenMV Cam M7 Smart Vision Camera is a small, low power, microcontroller board that allows you to easily implement applications using machine vision in the real world. You program the OpenMV Cam in high-level Python scripts (courtesy of the MicroPython Operating System) instead of C/C++.

This makes it easier to deal with the complex outputs of machine vision algorithms and working with high-level data structures. But, you still have total control over your OpenMV Cam and it’s I/O pins in Python. You can easily trigger taking pictures and videos on external events or execute machine vision algorithms to figure out how to control your I/O pins.


The OpenMV Cam Features:

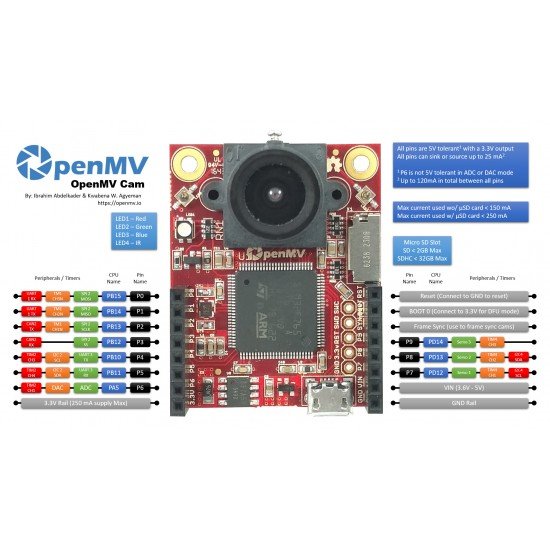

The STM32F765VI ARM Cortex M7 processor running at 216 MHz with 512KB of RAM and 2 MB of flash. All I/O pins output 3.3V and are 5V tolerant. The processor has the following I/O interfaces:

  • A full-speed USB (12Mbs) interface to your computer. Your OpenMV Cam will appear as a Virtual COM Port and a USB Flash Drive when plugged in.
  • A μSD Card socket capable of 100Mbs reads/writes which allows your OpenMV Cam to record video and easy pull machine vision assets off of the μSD card.
  • An SPI bus can run up to 54Mbs allowing you to easily stream image data of the system to either the LCD Shield, the WiFi Shield, or another microcontroller.
  • An I2C Bus, CAN Bus, and an Asynchronous Serial Bus (TX/RX) for interfacing with other microcontrollers and sensors.
  • A 12-bit ADC and a 12-bit DAC.
  • Three I/O pins for servo control.

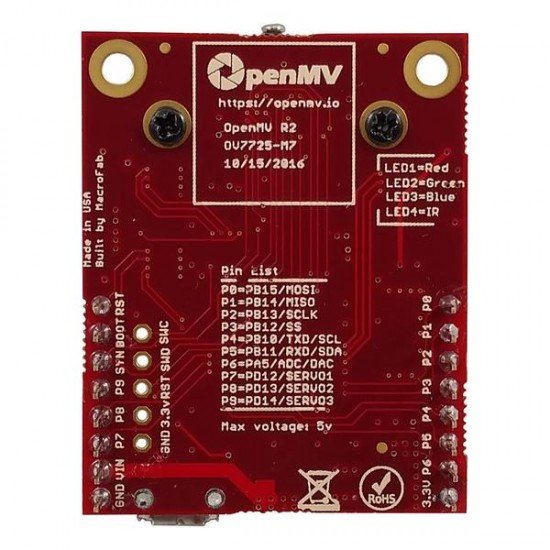

  • Interrupts and PWM on all I/O pins (there are 10 I/O pins on the board).
  • And, an RGB LED and two high power 850nm IR LEDs.

The OV7725 image sensor is capable of taking 640×480 8-bit grayscale images or 640×480 16-bit RGB565 images at 60 FPS when the resolution is above 320×240 and 120 FPS when it is below. Most simple algorithms will run at above 30 FPS. Your OpenMV Cam comes with a 2.8mm lens on a standard M12 lens mount. If you want to use more specialized lenses with your OpenMV Cam you can easily buy and attach them yourself.


Features:

  • microSD card socket capable of 100Mbs read or write.
  • SPI bus runs up to 54Mbs allowing easy stream image data.
  • I2C bus CAN bus, and asynchronous serial bus (TX/RX) for interfacing with microcontrollers and sensors.
  • Three I/O pins for servo control.
  • Interrupts and Pulse Width Modulation (PWM) on all 10 I/O pins.
  • RGB LED and two high power 850nm IR LEDs.
  • OV7725 image sensor capable of 640 x 480 8-bit grayscale or 320 x 240 16-bit RGB565 images at 30 FPS.
  • OpenMV camera comes with a 2.8mm lens on a standard M12 lens mount.


Applications:

  • Frame differencing.
  • Color tracking.
  • Face detection.
  • Eye-tracking.
  • Optical flow.
  • QR code detection/decoding.
  • Data matrix detection/decoding.
  • Linear barcode decoding.
  • AprilTag tracking.
  • Line detection.
  • Circle detection.
  • Rectangle detection.
  • Template matching.
  • Image capture.
  • Video recording.


Package Includes:

1 x OpenMV Cam M7 Module.

2 x 8*1 Burg Pins (Straight) (Unsoldered).

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
