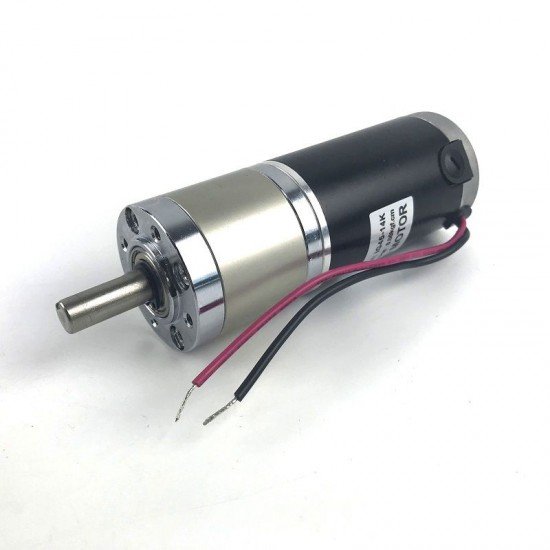

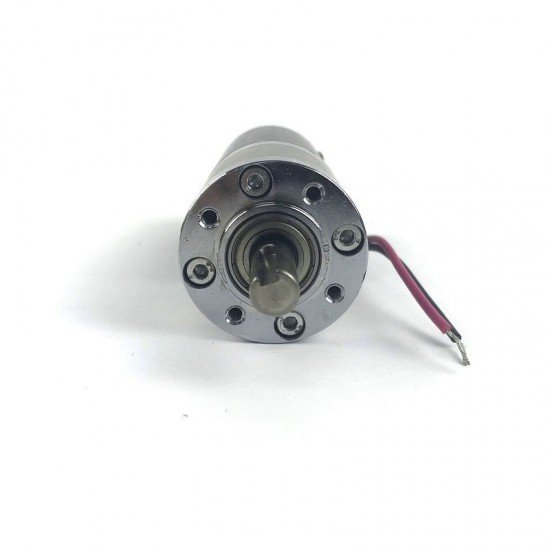

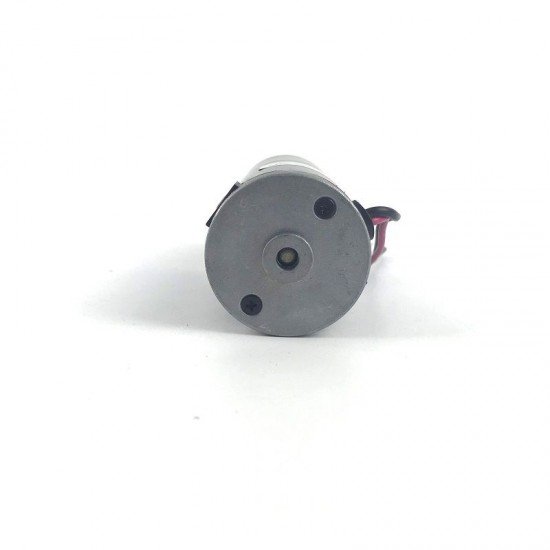

Planetary DC Geared Motor 350 RPM 78N-CM 24V IG45-14K

Planetary DC Geared Motor 350 RPM 78N-CM 24V IG45-14K
Planetary DC Geared Motor 350 RPM 78N-CM 24V IG45-14K
Planetary DC Geared Motor 350 RPM 78N-CM 24V IG45-14K
Planetary DC Geared Motor 350 RPM 78N-CM 24V IG45-14K
Planetary DC Geared Motor 350 RPM 78N-CM 24V IG45-14K
Planetary DC Geared Motor 350 RPM 78N-CM 24V IG45-14K
Planetary DC Geared Motor 350 RPM 78N-CM 24V IG45-14K
Planetary DC Geared Motor 350 RPM 78N-CM 24V IG45-14K
Planetary DC Geared Motor 350 RPM 78N-CM 24V IG45-14K
Based on 0 reviews. - Write a review
₹3,589
Ex Tax: ₹3,042
  • Stock: In Stock
  • Model: 10147
  • SKU: AST3203
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

You can consider these IG45 series motors as the Big Brother of IG32 and IG42 series planetary geared motors. The planetary geared motor is always well known for its low backlash and higher efficiency characteristic to meet the higher expectation. The Planetary DC Geared Motor 350 RPM 78N-CM 24V IG45-14K is manufactured by Chinese motor manufacturing company.

Though they are capable of giving more torque and more power than IG32 and IG42 planetary geared motors, yet they are cheaper because they don’t come with encoder feedback.

As these Epicyclic Gear Train motors are very popular amongst our Robotics designer. So we must ensure them for the quality and performance of these motors. For that purpose when we receive these Planetary DC Geared Motor at our Robu.in warehouse, we get them out and start testing each motor in our lab for the extreme pushable limits they can withstand.

This 45mm diameter model is even more powerful than the 32mm and 42mm diameter models to fit your high torque needs.

This is 24V DC motor which has a gearbox of 45mm diameter. The planetary type gearbox of this motor has 14:1 gearhead which produces 350 RPM with the torque value of around 78 N-CM.

We highly suggest you this motor for the general purpose automation projects.

Note: This motor has rated speed of 350 RPM. However, the RPM printed on the actual product mentions no load speed.

We have 12V and 24V DC Planetary geared motors with RPM range from 10 to 1700 with the torque capacity of more than 20 kg-cm, do not forget to check them out here.

Planetary DC Geared Motor

Features :

  • Brushed permanent magnet DC motor
  • Variable speed and reversible
  • Planetary Gear Box
  • Package Includes :

1 x IG45-14K Planetary 24V  DC Geared Motor 350RPM 78N-CM
