ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32

ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32
ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32
ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32
ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32
ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32
ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32
ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32
ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32
ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32
Based on 0 reviews. - Write a review
₹835
Ex Tax: ₹708
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7746
  • SKU: AST0797
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This is ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32.

ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

STM8 applications use the USB full speed interface to communicate with ST Visual Develop (STVD) or ST Visual Program (STVP) software. STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.

In addition, to provide the same functionalities as the ST-LINK/V2, the ST-LINK/V2-ISOL features digital isolation between the PC and the target application board. It also withstands voltages of up to 1000 Vrms.

Features :

  1. 5V power supplied by a USB connector
  2. USB 2.0 full speed compatible interface
  3. USB standard A to mini B cable
  4. 1.65V to 5.5V application voltage supported on SWIM interface
  5. SWIM low speed and high-speed modes supported
  6. 1.65V to 3.6V application voltage supported on the JTAG/SWD interface and 5V tolerant inputs
  7. Direct firmware update feature supported
  8. Status LED which blinks during communication with the PC

Package Includes :

1 x ST-LINK/V2 debugging and programming Unit

1 x USB standard A to mini B cable

1 x Connecting Cable for STM8 SWIM and STM32 JTAG/SWD protocol

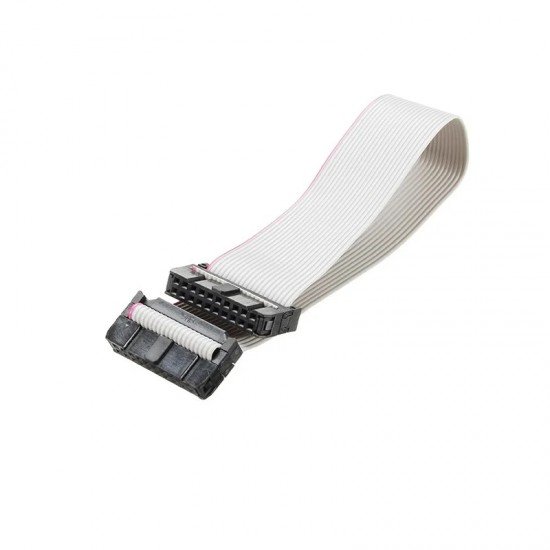

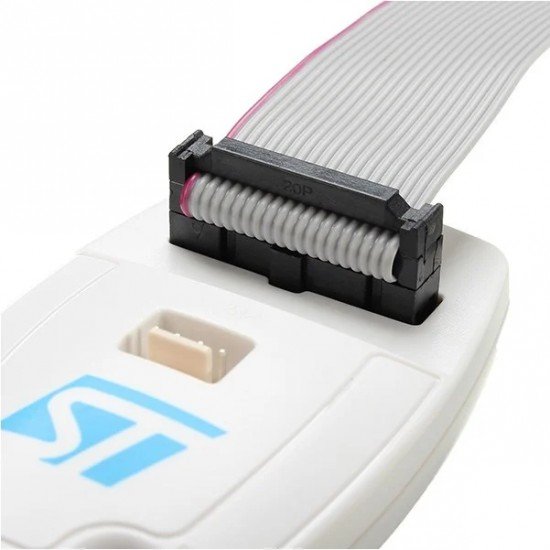

1 x Flat ribbon with a standard ERNI connector at one end (A JTAG or SWD and SWV flat ribbon with a 20 pin connector)

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
