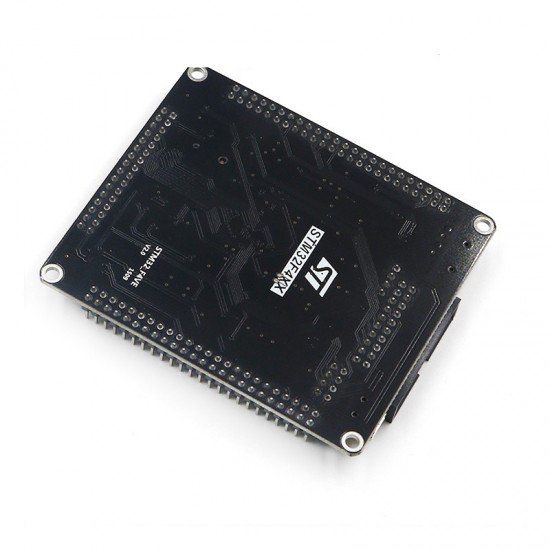

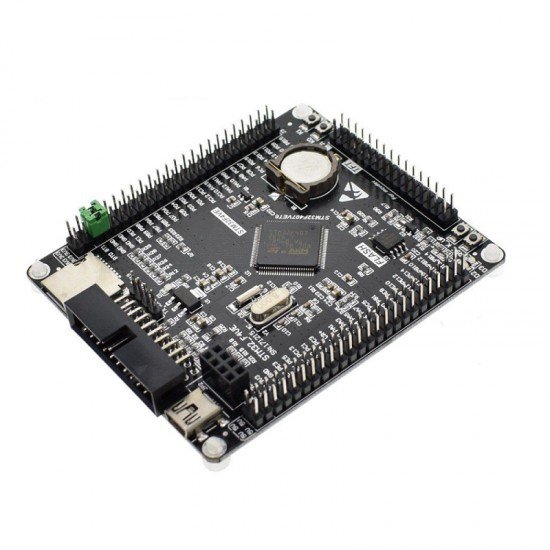

STM32F407VET6 Arm Cortex-M4 core with DSP and FPU

STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
Based on 0 reviews. - Write a review
₹1,592
Ex Tax: ₹1,349
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7771
  • SKU: AST0821
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The STM32F405xx and STM32F407xx family is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.

Features:

  1. Core: Ar  32-bit Cortex-M4 CPU with FPU
  2. LCD parallel interface, 8080/6800 modes
  3. Low-power operation
  4. 3×12-bit, 2.4 MSPS A/D converters
  5. 2×12-bit D/A converters
  6. General-purpose DMA
  7. Up to 17 timers
  8. Up to 140 I/O ports with interrupt capability

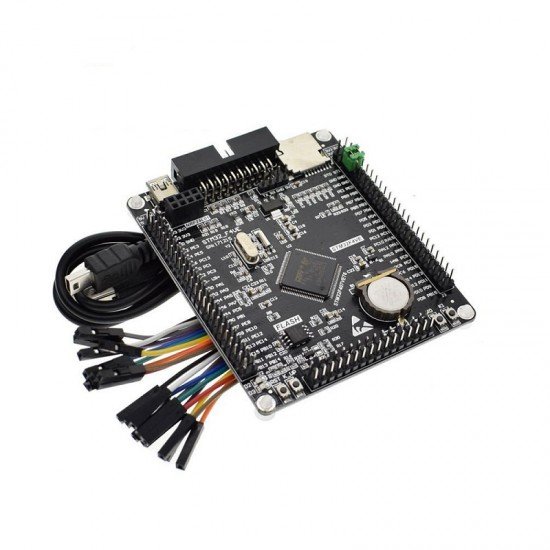

Package Includes:

1 x STM32F407VET6 Arm Cortex-M4 core with DSP and FPU

10 x Female-Female Jumper Cable

1 x USB Cable

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
