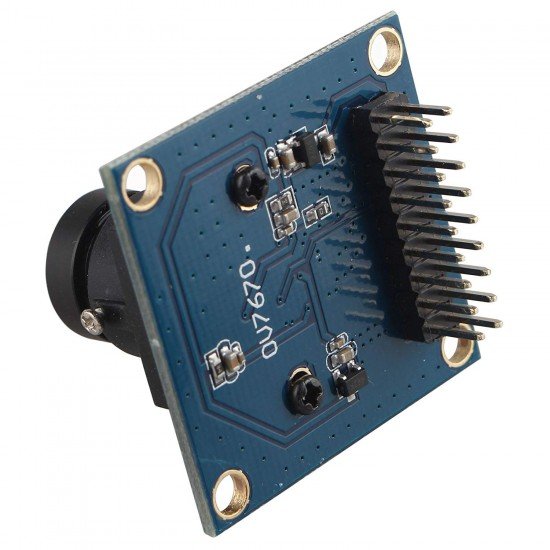

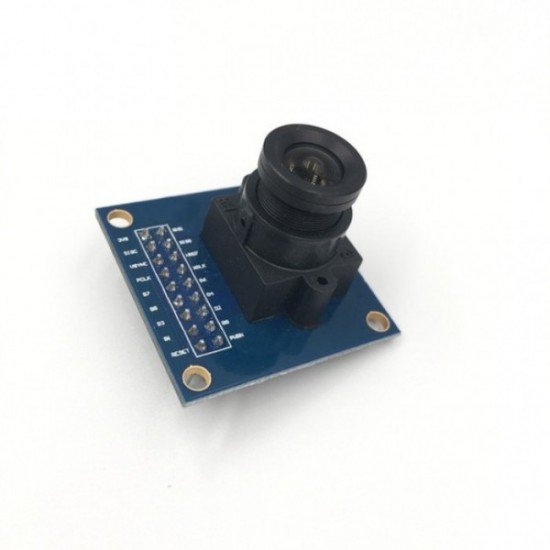

OV7670 640×480 VGA CMOS Camera Image Sensor Module

OV7670 640×480 VGA CMOS Camera Image Sensor Module
OV7670 640×480 VGA CMOS Camera Image Sensor Module
OV7670 640×480 VGA CMOS Camera Image Sensor Module
OV7670 640×480 VGA CMOS Camera Image Sensor Module
OV7670 640×480 VGA CMOS Camera Image Sensor Module
OV7670 640×480 VGA CMOS Camera Image Sensor Module
OV7670 640×480 VGA CMOS Camera Image Sensor Module
Based on 0 reviews. - Write a review
₹297
Ex Tax: ₹252
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7178
  • SKU: AST0230
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

OV7670 Camera Image Sensor Module is a low voltage CMOS sensor that provides the full functionality of a single-chip VGA camera and image processor in a small footprint package, DSP that can operate at a maximum of 30 frames per sec and 640 x 480 resolutions, equivalent to 0.3 Megapixels.

The captured image can be pre-processed by the DSP before sending it out. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, and more, are also programmable through the SCCB interface. OmniVision OV7670 CMOS VGA (640×480) CAMERA-CHIP Sensor with OmniPixel technology 3.3V DC Input Voltage. working Temp. 0-50 Degree Celsius All Glass Lenses, Lens(including seat) is Magnesium Alloy material.

In addition, OmniVision CameraChip products use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as Fixed Pattern Noise (FPN), smearing, blooming, etc., to produce a clean, fully stable color image. This Camera module is very powerful and easy-to-interface with an 8/16/32 bit Microcontroller. OV7670 640X480 VGA CMOS CAMERA IMAGE SENSOR MODULE will provide vision to your small embedded systems and will be useful for plenty of applications in Robotics.


Specifications and Features:

  • MODEL: OV7670 640X480 VGA CMOS CAMERA
  • Vario Pixel method for sub-sampling.
  • Auto Image Control: AEC, AGC, AWB, ABF, ABLC.
  • Image Quality Control: Color saturation, hue, gamma, sharpness, and anti-blooming.
  • Pixel Coverage: 3.6um x 3.6um.
  • Support VGA, CIF, and from CIF to 40 x 30 format.
  • Flicker 50/60Hz auto-detection.
  • Standard sccb interface, compatible with the i2c interface.
  • Edge enhancement level auto-adjust.
  • High sensitivity for low light applications.
  • ISP includes noise reduction and defect correction; Support image scaling; Lens shading correction.
  • De-noise level auto-adjust.
  • Duck Current: 12 mV/s at 6’C.
  • Low voltage suitable for embedded applications.


Package Includes:


1 x OV7670  Camera Module.

1 x Lens Cover.

6 Months Warranty
